70884- MP bid-daqs 420x520x31 mm ringiela waħda angolari tal-ball bearings huma disponibbli fl-istokk
Ħarsa ġenerali
Kuxxinetti tal-ballun tal-kuntatt angolari b'dimensjonijiet ewlenin standardizzati jikkorrispondu ma 'DIN 628-1.
It-tolleranzi dimensjonali u ġeometriċi tal-bearings standardizzati jikkorrispondu għall-klassi ta 'tolleranza pn għal din 620-2.
Tipi relatati 70884- MP-UA u 70884- Il-bearings MP-P5 huma fil-ħażna issa.
Ringiela waħda 70 ...- Serje MP b'gaġġa tar-ram imp-solidu, ggwidata tal-ballun; Din il-gaġġa tar-ram għandha saħħa tajba u reżistenza għas-sħana, li tista 'żżomm l-istruttura tal-bearing stabbli b'veloċità għolja u tadatta għas-sħana ġġenerata mill-bearings b'veloċità għolja. Angolu ta' kuntatt 30 grad, tip miftuħ; Jista 'jintuża f'temperaturi operattivi minn –30 grad sa +200 grad (iċ-ċrieki tiegħu stabbilizzati dimensjonali sa 200 grad). Klassi ta 'tolleranza normali (PN); Tista 'tiflaħ tagħbijiet assjali radjali u unidirezzjonali, li ma jkollhomx grass.
Dijametru tal-bore {{0}} mm; Dijametru ta 'barra -520 mm; wisa' -31 mm; Quddiesa -15. 4 kg; cr =173 kn; c0r =320 kn; veloċità li tillimita =1900 1}} / min.
Speċifikazzjonijiet

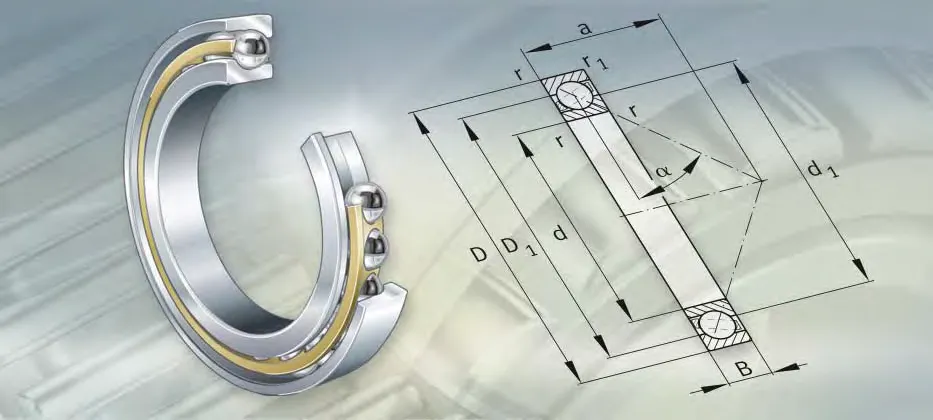

| Dimensjonijiet u Dejta ta 'Dejta Teknika | |
| Parti Nru. | 70884- mp-single ringiela angular contam ball bearing |
| Marka | Marka FAG magħmula fil-Ġermanja / marka SDVV magħmula fiċ-Ċina |
| Dimensjonijiet ewlenin | 420x520x31 mm |
| d | 420 mm |
| D | 520 mm |
| B | 31 mm |
| rmin | 2 mm |
| D1 | 478.7 mm |
| Angolu ta 'kuntatt | 30 grad |
| da min. | 428.8 mm |
| Da max. | 511.2 mm |
| ra max. | 2 mm |
| Cr | 173 kN |
| C0r | 320 kN |
| M | 15.4 kg |
Taħt testendi l-bearings tal-ballun tal-kuntatt angolari bi kwalità għolja u prezz kompetittiv huwa fl-istokk
| Denominazzjoni | Massa m ≈kg |
Dimensjonijiet | ||||||||
| d | D | B | r min. | r1 min. |
D₁ | d₁ | a | grad |
||
| 70884- mp 71884- mp |
15.4 20,3 |
420 | 520 | 31 | 2 | 1 | 478.7 | 461.3 | 151 | 30 |
| 71884- mp | 20.3 | 420 | 520 | 46 | 21 | 11 | 483.7 | 458.4 | 159 | 30 |
| 70984- mp | 316 | 420 | 560 | 44 | 3 | 11 | 504.5 | 475.6 | 164 | 30 |
| 71984- mp | 414 | 420 | 560 | 65 | 4 | 15 | 508.2 | 474.6 | 174 | 30 |
| 7084- mp | 868 | 420 | 620 | 90 | 5 | 2 | 540.0 | 500.0 | 195 | 30 |
| 7284- b-mpb | 228 | 420 | 760 | 109 | 75 | 4 | 619.0 | 560.7 | 302 | 40 |
| 7384- B-MP | 395 | 420 | 850 | 136 | 95 | 5 | 672.0 | 597.7 | 334 | 40 |
| 70888- mp | 16 | 440 | 540 | 31 | 2 | 1 | 498.7 | 481.3 | 157 | 30 |
| 71888- mp | 213 | 440 | 540 | 46 | 21 | 11 | 502.4 | 477.6 | 164 | 30 |
| F -803794. Skl | 173 | 440 | 540 | 46 | 21 | 6 | 502.0 | 481.0 | 164 | 30 |
| F -808756. Skl | 453 | 440 | 580 | 70 | 4 | 15 | 530.9 | 493.0 | 184 | 30 |
| 70988- mp | 422 | 440 | 600 | 50 | 4 | 15 | 538.5 | 503.5 | 175 | 30 |
| Z -509094. 01.Skl | 569 | 440 | 600 | 74 | 35 | 35 | 540.0 | 500.0 | 255 | 40 |
| 71988- mp | 569 | 440 | 600 | 74 | 4 | 15 | 540.0 | 500.0 | 187 | 30 |
| 7088- mp | 102 | 440 | 650 | 94 | 6 | 3 | 566.5 | 523.0 | 204 | 30 |
| 7288- B-MP | 255 | 440 | 790 | 112 | 75 | 4 | 645.5 | 584.2 | 314 | 40 |
| 7388- B-MP | 477 | 440 | 900 | 145 | 95 | 5 | 709.0 | 630.7 | 350 | 40 |
| 70892- mp | 243 | 460 | 580 | 37 | 21 | 11 | 531.1 | 509.0 | 169 | 30 |
| 71892- mp | 322 | 460 | 580 | 56 | 3 | 11 | 536.9 | 506.0 | 178 | 30 |
| F -803705. Skl | 372 | 460 | 600 | 50 | 3 | 11 | 535.4 | 507.0 | 178 | 30 |
| 70992- mp | 446 | 460 | 620 | 50 | 4 | 15 | 558.5 | 523.5 | 181 | 30 |
| 71992- mp | 539 | 460 | 620 | 74 | 4 | 15 | 560.0 | 520.0 | 193 | 30 |
| 7092- mp | 115 | 460 | 680 | 100 | 6 | 3 | 600.1 | 544.5 | 214 | 30 |
| 7292- b-mpb | 287 | 460 | 830 | 118 | 75 | 4 | 677.5 | 612.3 | 330 | 40 |
| 7392- B-MP | 573 | 460 | 950 | 155 | 95 | 5 | 746.0 | 663.2 | 373 | 40 |
| Z -510289. 01.Skl | 684 | 465 | 635 | 76 | 35 | 35 | 565.5 | 533.5 | 269 | 40 |
| 70896- mp | 252 | 480 | 600 | 37 | 21 | 11 | 551.1 | 529.0 | 174 | 30 |
| 71896- mp | 339 | 480 | 600 | 56 | 3 | 11 | 556.8 | 526.0 | 184 | 30 |
| 70996- mp | 543 | 480 | 650 | 54 | 4 | 15 | 582.0 | 548.0 | 190 | 30 |
| 71996- mp | 736 | 480 | 650 | 78 | 5 | 2 | 586.0 | 544.7 | 202 | 30 |
| 7096- mp | 129 | 480 | 700 | 100 | 6 | 3 | 613.0 | 567.0 | 220 | 30 |
