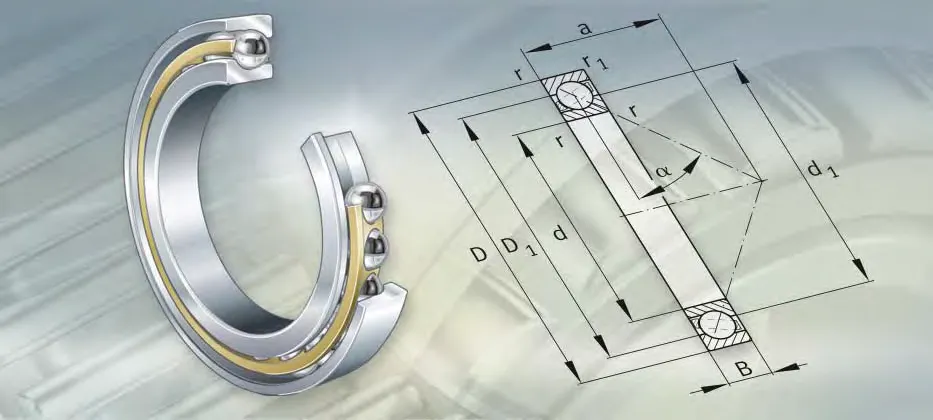

718 / 750- MPB - Ringiela waħda angolari tal-ball bearings
Ħarsa ġenerali
Kuxxinetti tal-ballun tal-kuntatt angolari b'dimensjonijiet ewlenin standardizzati jikkorrispondu ma 'DIN 628-1.
It-tolleranzi dimensjonali u ġeometriċi tal-bearings standardizzati jikkorrispondu għall-klassi ta 'tolleranza pn għal din 620-2.
L-istess kodiċi tal-bearing 718 / 750- mpb-p 5- ul; 718 / 750- MPB-P6; 718/750 AGMB; 718 / 750.MPB Il-bearings huma fil-ħażna.
Ringiela waħda 718 ...- Serje MPB b'gaġġa tar-ram-solidu MPB, ċirku ta 'ġewwa ggwidat; din il-gaġġa tar-ram għandha saħħa tajba u reżistenza għas-sħana li tista' żżomm l-istruttura tal-bearing stabbli b'veloċità għolja u tadatta għas-sħana ġġenerata mill-bearing b'veloċità għolja. Angolu ta 'veloċità għolja 30 grad; mingħajr siġill; Dan il-bearing jista 'jintuża f'temperaturi operattivi minn –30 grad sa +200 grad (id-dimensjonali taċ-ċirku tiegħu stabbilizzat sa 200 grad). Klassi ta' tolleranza tal-PN normali; Jista 'jiflaħ għal tagħbijiet assjali radjali u unidirezzjonali, li jġorru mingħajr grass.
Dijametru tal-bore {{0}} mm; Dijametru ta 'barra -920 mm; wisa' -78 mm; Massa -111 kg; cr =640 kn; c0r =1630 kn; veloċità li tillimita =940 1 / min.reference veloċità =485 1 / min.
Speċifikazzjonijiet
| Dimensjonijiet u Dejta ta 'Dejta Teknika | |
| Parti Nru. | 718 / 750- mpb -single ringiela ta 'kuntatt angolari ball bearing |
| Marka | Marka FAG magħmula fil-marka tal-Ġermanja / SDVV magħmula fiċ-Ċina |
| Dimensjonijiet ewlenin | 750x920x78 mm |
| d | 750 mm |
| D | 920 mm |
| B | 78 mm |
| rmin | 5 mm |
| D1 | 857.45 mm |
| Angolu ta 'kuntatt | 30 grad |
| da min. | 768 mm |
| Da max. | 902 mm |
| ra max. | 4 mm |
| Cr | 640 kN |
| C0r | 1630 kN |
| M | 111 kg |
Kodiċijiet li jġorru rrakkomandati
| NNU4930MAW33 | 150.000x 210.000x 60.000 |
| NNU4932Maw33 | 160.000x 220.000x 60.000 |
| NNU4934Maw33 | 170.000 x230.000x 60.000 |
| NNU4936Maw33 | 180.000x 250.000x 69.000 |
| NNU4938Maw33 | 190.000x 260.000x 69.000 |
| NNU4940Maw33 | 200.000x 280.000x 80.000 |
| NNU4140Maw33 | 200.000x 340.000x 140.000 |
| NNU4944Maw33 | 220.000x 300.000x 80.000 |
| NNU4144Maw33 | 220.000 x370.000x 150.000 |
| NNU4948Maw33 | 240.000x 320.000x 80.000 |
| NNU4148Maw33 | 240.000 x400.000x 160.000 |
| NNU4952Maw33 | 260.000 x360.000x 100.000 |
| NNU4152Maw33 | 260.000 x440.000x 180.000 |
| NNU4956Maw33 | 280.000x 380.000x 100.000 |
| NNU4156Maw33 | 280.000x 460.000x 180.000 |
| NNU4960Maw33 | 300.000x 420.000x 118.000 |
| NNU4160Maw33 | 300.000 x500.000x 200.000 |
| NNU4964Maw33 | 320.000x 440.000x 118.000 |
| NNU4164Maw33 | 320.000 x540.000 x218.000 |
| NNU4968Maw33 | 340.0000 x460.0000 x118.0000 |
| NNU4068Maw33 | 340.0000x 520.0000x 180.0000 |
| NNU4168Maw33 | 340.000x 580.000x 243.00 |
| NNU4972Maw33 | 360.0000x 480.0000x 118.0000 |
| NNU4072Maw33 | 360.0000x 540.0000x 180.0000 |
| NNU4172Maw33 | 360.000 x600.000x 243.000 |
| NNU4976Maw33 | 380.000x 520.000x 140.000 |
| NNU4076Maw33 | 380.000x 560.0000x 180.0000 |
| NNU4176Maw33 | 380.000 x620.000x 243.000 |
| NNU4980Maw33 | 400.000x 540.000x 140.000 |
| NNU4080Maw33 | 400.0000x 600.0000 x200.0000 |
| NNU4180Maw33 | 400.000x 650.000 x250.000 |
| NNU4984Maw33 | 420.0000 x560.0000x 140.0000 |
| NNU4084Maw33 | 420.0000x 620.0000x 200.0000 |
| NNU4184Maw33 | 420.000x 700.000x 280.000 |
| NNU4988MAW33 | 440.0000 x600.0000x 160.0000 |
| NNU4088MAW33 | 440.0000 x650.0000x 212.0000 |
| NNU4188MAW33 | 440.0000x 720.0000x 280.0000 |
| NNU4992Maw33 | 460.000x 620.000x 160.000 |
| NNU4092Maw33 | 460.000x 680.0000x 218.0000 |
| NNU4192Maw33 | 460.000x 760.000x 300.000 |
| NNU4996Maw33 | 480.000 x650.000x 170.000 |
| NNU4096Maw33 | 480.0000x 700.0000x 218.0000 |
| NNU4196Maw33 | 480.000 x790.000x 308.000 |
| NNU49 / 500MAW33 | 500.0000x 670.0000x 170.0000 |
| NNU40 / 500MAW33 | 500.0000x 720.0000 x218.0000 |
| NNU49 / 530MAW33 | 530.0000 x710.0000x 180.0000 |
| NNU40 / 530MAW33 | 530.0000 x780.0000x 250.0000 |
| NNU49 / 560Maw33 | 560.0000 x750.0000 x190.0000 |
| NNU49 / 600MAW33 | 600.0000 x800.0000 x200.0000 |
| NNU49 / 630Maw33 | 630.0000x 850.0000x 218.0000 |
| NNU49 / 670Maw33 | 670.0000 x900.0000x 230.0000 |
| NNU40 / 670Maw33 | 670.0000x 980.0000x 308.0000 |
| NNU49 / 710Maw33 | 710.0000x 950.0000 x243.0000 |
| NNU49 / 750Maw33 | 750.0000x 1000.0000x 250.0000 |
| NNU49 / 800MAW33 | 800.000x1060.000x258.00 |
| NNU49 / 850Maw33 | 850.000 x1120.000x 272.000 |
| NNU49 / 900MAW33 | 900.000x 1180.000x 280.000 |
