Deskrizzjoni
Ibgħat l-inkjesta

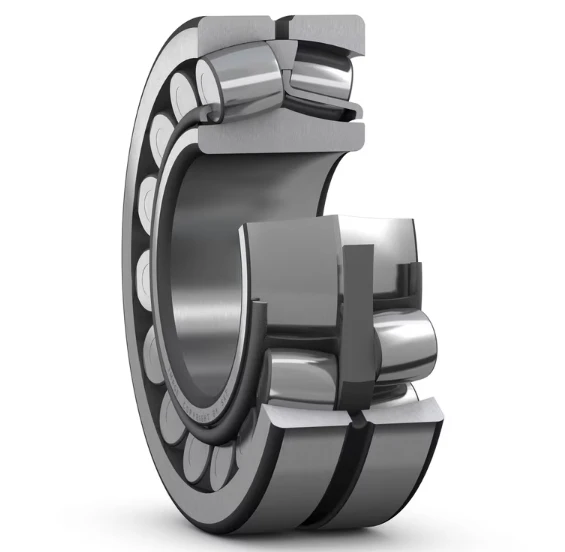

22314 EK/VA405 -Spherical Roller Bearing Għall-Applikazzjoni Vibratorja Fl-Istokk
Prinċipalment użat għall-magna vibratorja; Ringieli doppji; Tip tapered 1:12 bore; Gaġġa tal-folja tal-metall imwebbes bil-wiċċ; Preċiżjoni P6
Dijametru tat-toqba-70 mm;Djametru ta' barra-150 mm;Wisa-51 mm;C-413 kN; C0-430 kN;Pi]-4.45 kg
Speċifikazzjonijiet
| Dimensjonijiet u Dejta Teknika | |
| Filwaqt NO. | 22314 EK/VA405 -Bearing Sferiku tar-Roller |
| Marka | SKF magħmul fl-ISVEZJA |
| Dimensjonijiet Prinċipali | 70x150x51 mm |
| d | 70 mm |
| D | 150 mm |
| B | 51 mm |
| d2 | ≈90.3 mm |
| D1 | ≈128 mm |
| b | 8.3 mm |
| K | 4.5 mm |
| r1,2 | min.2.1 mm |
| C | 413 kN |
| C0 | 430 kN |
| Pu | 45 kN |
| Veloċità ta' referenza | 3 400 R/min |
| Limitazzjoni tal-veloċità | 4 500 R/min |
| Wight | 4.45 kg |
Taħt Applikazzjoni Vibratorja Il-Bearings tar-Roller Sferiku huma fl-istokk issa, Merħba biex ibgħatilna l-inkjesta!
| 22308 E/VA405 | SKF | 40x90x33 |
| 22309 E/VA405 | SKF | 45x100x36 |
| 22310 E/VA405 | SKF | 50x110x40 |
| 22311 E/VA405 | SKF | 55x120x43 |
| 22311 EK/VA405 | SKF | 55x120x43 |
| 22312 E/VA405 | SKF | 60x130x46 |
| 22312 EK/VA405 | SKF | 60x130x46 |
| 22313 E/VA405 | SKF | 65x140x48 |
| 22313 EK/VA405 | SKF | 65x140x48 |
| 22314 E/VA405 | SKF | 70x150x51 |
| 22314 EK/VA405 | SKF | 70x150x51 |
| 22315 EJA/VA405 | SKF | 75x160x55 |
| 22315 EKJA/VA405 | SKF | 75x160x55 |
| 22316 EJA/VA405 | SKF | 80x170x58 |
| 22316 EKJA/VA405 | SKF | 80x170x58 |
| 22317 EJA/VA405 | SKF | 85x180x60 |
| 22317 EKJA/VA405 | SKF | 85x180x60 |
| 22318 EJA/VA405 | SKF | 90x190x64 |
| 22318 EKJA/VA405 | SKF | 90x190x64 |
| 22319 EJA/VA405 | SKF | 95x200x67 |
| 22319 EKJA/VA405 | SKF | 95x200x67 |
| 22320 EJA/VA405 | SKF | 100x215x73 |
| 22320 EKJA/VA405 | SKF | 100x215x73 |
| 22322 EJA/VA405 | SKF | 110x240x80 |
| 22322 EKJA/VA405 | SKF | 110x240x80 |
| 22324 CCJA/W33VA405 | SKF | 120x260x86 |
| 22324 CCKJA/W33VA405 | SKF | 120x260x86 |
| 22326 CCJA/W33VA405 | SKF | 130x280x93 |
| 22326 CCKJA/W33VA405 | SKF | 130x280x93 |
| 22328 CCJA/W33VA405 | SKF | 140x300x102 |
| 22328 CCKJA/W33VA405 | SKF | 140x300x102 |
| 22330 CCJA/W33VA405 | SKF | 150x320x108 |
| 22330 CCKJA/W33VA405 | SKF | 150x320x108 |
| 22332 CCJA/W33VA405 | SKF | 160x340x114 |
| 22332 CCKJA/W33VA405 | SKF | 160x340x114 |
| 22334 CCJA/W33VA405 | SKF | 170x360x120 |
| 22334 CCKJA/W33VA405 | SKF | 170x360x120 |
| 22336 CCJA/W33VA405 | SKF | 180x380x126 |
| 22336 CCKJA/W33VA405 | SKF | 180x380x126 |
| 22338 CCJA/W33VA405 | SKF | 190x400x132 |
| 22338 CCKJA/W33VA405 | SKF | 190x400x132 |
| 22340 CCJA/W33VA405 | SKF | 200x420x138 |
| 22340 CCKJA/W33VA405 | SKF | 200x420x138 |
| 22344 CCJA/W33VA405 | SKF | 220x460x145 |
| 22344 CCKJA/W33VA405 | SKF | 220x460x145 |
| 22348 CCJA/W33VA405 | SKF | 240x500x155 |
| 22348 CCKJA/W33VA405 | SKF | 240x500x155 |
