231/850-BK-MB Tapered Bore Spherical Roller Bearing
Ħarsa ġenerali
Bil Tapered bore u kustilja ċentrali; Dijametru tat-toqba{{0}} mm; Dijametru ta' barra-1360 mm; Wisa'-400 mm; Massa-2400 kg; Cr=17000 kN; C0r=38000 kN; Limitazzjoni tal-veloċità=360 min–1.
Applikazzjoni
Magni ta 'użi ewlenin: makkinarju għall-produzzjoni tal-karta, gerijiet ta' tnaqqis, fusien tal-vetturi ferrovjarji, sedili li jġorru l-gerbox tal-irrumblar, rombli tal-irrumblar, crushers, skrins li jivvibraw, makkinarju tal-istampar, makkinarju tax-xogħol tal-injam, diversi reducers industrijali, berings li jallinjaw waħedhom bilqiegħda vertikali.
Speċifikazzjoni
| Dimensjonijiet u Dejta Teknika | |
| Parti NO. | 231/850-BK-MB - Spherical Roller Bearings |
| Brand | Ditta FAG magħmula fil-ĠERMANJA |

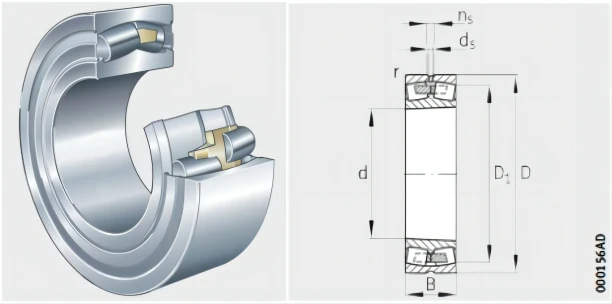

| Dimensjonijiet Prinċipali | 850x1360x400 mm |
| d | 800 mm |
| D | 1360 mm |
| B | 400 mm |
| rmin. | 12 mm |
| D1 | 1198.1 mm |
| da min. | 898 mm |
| Da max. | 1312 mm |
| ra max. | 10 mm |
| Cr | 17000 kN |
| C0r | 38000 kN |
| M | 2400 kg |
| Profil tal-Kumpanija | |
Kodiċi tat-tip simili disponibbli
| Denominazzjoni | Disinn | Quddiesa | Dimensjonijiet | ||||||
| m | d |
D |
B |
D₁ 8 |
ds |
ns | |||
| =kg | min. | ||||||||
| 231/850-BK-MB | 2 | 2400 | 850 | 1360 | 400 | 12 | 11,981 | 125 | 235 |
| 231/850-B-MB | 2 | 2400 | 850 | 1360 | 400 | 12 | 11,981 | 125 | 235 |
| 241/850-BK30-MB | 2 | 2840 | 850 | 1360 | 500 | 12 | 11,717 | 125 | 235 |
| 241/850-B-MB | 2 | 2950 | 850 | 1360 | 500 | 12 | 11,717 | 125 | 235 |
| 232/850-B-MB | 2 | 3920 | 850 | 1500 | 515 | 15 | 12,772 | 125 | 235 |
| 238/900-BK-MB | 2 | 274 | 900 | 1090 | 140 | 5 | 10,361 | 8 | 15 |
| 238/900-B-MB | 2 | 274 | 900 | 1090 | 140 | 5 | 10,361 | 8 | 15 |
| 248/900-BK30-MB | 2 | 248 | 900 | 1090 | 190 | 5 | 10,305 | 8 | 15 |
| 248/900-B-MB | 2 | 382 | 900 | 1090 | 190 | 5 | 10,305 | 8 | 15 |
| 239/900-K-MB | 2 | 641 | 900 | 1180 | 206 | 6 | 10,988 | 125 | 235 |
| 239/900-MB | 2 | 653 | 900 | 1180 | 206 | 6 | 10,988 | 125 | 235 |
| Z-528751.PRL | 2 | 816 | 900 | 1180 | 280 | 9,5/61) | 10,906 | 125 | 235 |
| 249/900-K30-MB | 2 | 831 | 900 | 1180 | 280 | 6 | 1.088,6 | 125 | 235 |
| 249/900-MB | 2 | 831 | 900 | 1180 | 280 | 6 | 1.088,6 | 125 | 235 |
| Z-541831.249/900-B | 3 | 849 | 900 | 1180 | 280 | 6 | 10,909 | 125 | 235 |
| 230/900-BK-MB | 2 | 1280 | 900 | 1280 | 280 | 75 | 11,713 | 125 | 235 |
| 230/900-B-MB | 2 | 1280 | 900 | 1280 | 280 | 75 | 11,713 | 125 | 235 |
| 240/900-BK30-MB | 2 | 1570 | 900 | 1280 | 375 | 75 | 11,507 | 125 | 235 |
| 240/900-B-MB | 2 | 1590 | 900 | 1280 | 375 | 75 | 11,507 | 125 | 235 |
| 231/900-BK-MB | 2 | 2570 | 900 | 1420 | 412 | 12 | 12,524 | 125 | 235 |
| 231/900-B-MB | 2 | 2570 | 900 | 1420 | 412 | 12 | 12,524 | 125 | 235 |
| 241/900-BK30-MB | 2 | 3.040 | 900 | 1420 | 515 | 12 | 12,304 | 125 | 235 |
| 241/900-B-MB | 2 | 3200 | 900 | 1420 | 515 | 12,304 | 125 | 235 | |
| F-807608.PRL | 2,K30 | 3340 | 900 | 1420 | 550 | 95 | 1211 | 125 | 235 |
| 238/950-BK-MB | 2 | 335 | 950 | 1150 | 150 | 5 | 10,928 | 8 | 15 |
| 238/950-B-MB | 2 | 335 | 950 | 1150 | 150 | 5 | 10,928 | 8 | 15 |
| 239/950-BK-MB | 2 | 746 | 950 | 1250 | 224 | 75 | 11,625 | 125 | 235 |
| Z-528752.PRL | 2 | 1000 | 950 | 1250 | 300 | 75 | 11,526 | 125 | 235 |
| 249/950-BK30-MB | 2 | 1030 | 950 | 1250 | 300 | 75 | 1155 | 125 | 235 |
| 249/950-B-MB | 2 | 1030 | 950 | 1250 | 300 | 75 | 1155 | 125 | 235 |
| Z-541832.249/950-B | 3 | 1040 | 950 | 1250 | 300 | 75 | 1155 | 125 | 235 |
| 240/950-BK30-MB | 2 | 1970 | 950 | 1360 | 412 | 75 | 1216 | 125 | 235 |
| 240/950-B-MB | 2 | 2.010 | 950 | 1360 | 412 | 75 | 1216 | 125 | 235 |
